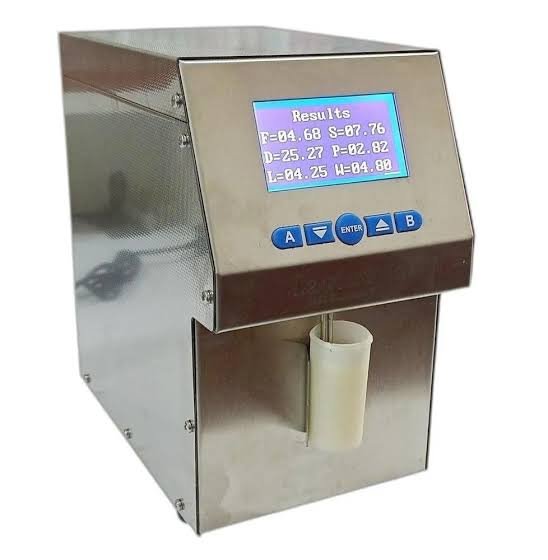

Lactosacan milk analyzer

Key features of "LACTOSCAN SL" milk analyzer:

• User-friendly: simple in operation, maintenance, calibration and installation

• Portable and compact design

• Very small quantity of milk required

• Low power consumption

• No use of hazardous chemicals

• One year full warranty

• Measuring accuracy adjustment can be done by the user RS 232 Interface

• ESC POS Printer Support

• Two samples self-calibration

Environmental Conditions:

Ambient air temperature — 10°C –40°C (option 43°C)

Milk temperature — 1°C – 40°C

Relative humidity — 30% – 80%

Electrical Parameters:

AC Power Supply voltage – 220V/110V

DC Power Supply voltage – 12V to 14,2V

Power Consumption 30W max

Mechanical Parameters:

Dimensions (W x D x H) 100x223x216 mm

Weight < 3.5 kg

TECHNICAL SPECIFICATION:

Item Measuring Range absolute Error

FAT 0.01% to 25% ± 0.1%

SNF 3% to 15% ± 0.15%

Density 1015 to 1040 kg/m3 ± 0.3 kg/m3

Temperature 1oC to 40oC ±1oC

Proteins 2% to 7% ± 0.15%

Lactose 0.01 % to 6 % ± 0.2%

Added Water 0 % to 70 % ± 3%

Salts 0.4 to 1.5% ± 0.05%

Additional Information:

Pay Mode Terms: T/T (Bank Transfer)

Port of Dispatch: AHMEDABAD

Production Capacity: 1000
